Quickstart Guide

About this Guide

This guide will lead you through the required installations, configurations, and steps to download and use mTree on your machine. It will also show you the main functionalities of mTree and should serve as a jumping-off point for further learning. This guide is meant to be understandable to complete beginners, and currently documents processes for Windows and Mac users. mTree is however compatible with major Linux distributions.

By the end of this Quickstart Guide you should be able to:

  • set up mTree on your machine
  • download examples
  • run an example simulation
  • set up your own mTree project
  • implement the main functionalities of mTree
  • debug mTree projects
  • use the reference guide
  • continue learning mTree with further examples.

Installation

Docker and mTree

The user version of mTree is distributed as a Docker image, so in order to use the latest version of mTree you need both Docker and the latest mTree image. Docker is a way to package code so that is runs the same way on any system, to install it follow this guide: Installing Docker Desktop. The guide specifically shows you how to install Docker Desktop, which is also used in mTree installation and configuration guide.

Once you have Docker installed, you can download the latest mTree image, following this guide: Installing mTree.

Git

In order to download the examples used in this guide, you will need git. Even if you are unfamiliar with git, there is a good chance it is already installed on your computer. Depending on your operating system, git installation will differ slightly.

Mac Users
  • Open up Terminal and run git --version.
  • If the command is not recognized, follow this link to Download Git for macOS.
  • You have several options on how to install git. The homebrew route is a good option, for which you can follow this tutorial

video: Git Homebrew Installation.

Windows Users

IDE and Python

While not strictly required, we using an Integrated Development Environment (IDE) to edit and view mTree simulation code. If you are unfamiliar with any IDE, VSCode and Spyder are great IDEs for python.

Similarly, installing python natively is not strictly required to be able to run or develop mTree simulations, it is highly recommended for unit testing. Get the latest Python distribution or install it with a suite of science-oriented packages through Anaconda.

Cloning mTree_auction_examples Folder

We are going to clone (download a copy) the mTree_auction_examples repository and run one of the examples to make sure mTree is running properly on your machine.

Open your Command Line (Command Prompt or Power Shell on Windows, Terminal on macOS) at the place in your file system where you would like to download the mTree Examples.

Tip

If you opened the Command Line in a different place, you can navigate your file system using the cd command. If you are new to Command Line you can check out these video tutorials:

Terminal for Beginners (macOS)
A Beginner’s Guide to the Windows Command Prompt (Windows)

Once at your desired location, run the following code to create a local copy of the mTree_auction_examples folder:

git clone https://github.com/nalinbhatt/mTree_auction_examples.git

Running an Example

Because mTree is containerized, to run it we need to create a Docker container based on the image. This is easy using the Docker Desktop app that we downloaded in Installation section.

Container Setup

Follow the steps in the mTree Container Setup guide, setting the Host Path to your mTree_auction_example folder.

After finishing the setup process, click Container/Apps on the sidebar of Docker Desktop and select your mTree_auction_examples container.

../_images/mTree_auction_examples_comp_setup.png

In your Containers/Apps section, you should see a container similar to this with the name you chose.

Running the Container

Start the container and open the Command Line Interface (CLI) from inside your Docker Desktop by clicking the CLI button. A more in-depth look can be found in Container Options under Start and Open Shell.

Your CLI should look something like this:

../_images/mTree_auction_examples_shell.png

mTree_auction_examples CLI window produced by clicking the CLI button.

Double check that the shell is running in the appropriate folder by running the following commands:

Mac

ls

Windows

dir

You should see the following output:

../_images/quick_start_ls.png

Folders inside mTree_auction_examples.

Example: Common Value Auction

One of the subfolders present should have the name common_value_auction. Further information about the auction style and description can be found here: Common Value Auction.

In your mTree_auction_examples container CLI type in the following command to set the current directory to common_value_auction.

cd common_value_auction

File Structure

After setting common_value_auction as the current directory, run ls (Mac) or dir (Windows). You should see the following folders.

  1. config
  2. mes
  3. logs
../_images/quick_start_cva_ls.png

Folders inside common_value_auction

Note

In order to run an mTree simulation, you need to set the current directory to the folder which contains the config, mes, and logs folders. mTree looks for the config and mes folders in particular to run the simulation. In our example, this folder is called common_value_auction.

Tip

If you want, you can also set the container’s Host Path directly to the folder containing the config and mes folders. You would no longer have to navigate using the CLI but you would need to create a container for each simulation project.

The config folder folder (short for configurations) contains your configuration files, in a .JSON fomrat which describe the way in which your simulation will be run by mTree. The config files describe the types and number of actors to be used in the simulation, the number of runs to perform, and allow passing of experimental constants into the actors.

The mes mes_folder folder (short for Microeconomic System) containes the python files where you define the different Actor classes to be used in your microeconomic system. It should contain an Environment, and at least one Institution and Agent.

Warning

It is critical that the mTree working directory contains a config folder with a JSON config file inside and a separate mes folder with python files inside, containing at least one each of: Environment , Institution and Agent. In the absence of any of these your mTree simulation will not run.

Inside the config folder in the common_value_auction auction example, you should see a basic_simulation.json file. This is the config file which we will run.

For the next step we want to make sure that our current directory is common_value_auction so if you used the cd command to change the directory to config and view its contents, we want to go up a directory using the following command to make sure we are in the right directory.

cd ..

Running common_value_auction simulation

We can type the following command into the shell to start mTree.

mTree_runner

You should see something similar to this.

../_images/quick_start_mTree_runner.png

mTree_runner window

Enter the following to start the selection process for the config file.

run_simulation

Your window should look like this.

../_images/quick_start_run_simulation.png

run_simulation window

Click <enter> to select and run the basic_simulation.json file. Your output should look something similar to this.

../_images/quick_start_run_config.png

Running basic_simulation.json file

How to know your simulation has finished running?

mTree provides a check_status command that allows you to inquire the state of the simulation from the shell or console. Run the following command in your shell to see the state of the simulation. If you wish to know more about this command visit mTree Simulation State section.

check_status

Note

You can enter the check_status command multiple times to view the state of your simulation.

Depending on the when you entered the check_status command, you should see any one of the following screens.

../_images/quick_start_check_status_running.png

This indicates our simulation is still running

../_images/quick_start_check_status_finished.png

This indicates our simulation has finished running and we can move to the next step and view our simulation results.

Once we have identified that our simulation has finished we can move on to the next step which involves

Simulation Results

Ideally when a simulation is run, you should setup Actors in such a way that they constantly log their states to .log and .data files. This allows us to analyze how Actors behaved in our system, what decisions they made, and what effects those decisions had on the system as whole.

logs

The logs folder, inside your simulation folder (which in our case is common_value_auction), is where the output from your simulation gets stored. You should see a file ending in .log and a file ending in .data.

More on how these files are named can be found here.

Note

In the figure below, we use VSCode to open the generated log files. However, no IDE is necessary to open these files and your notepad should also work. That being said, we still advise using an IDE, like VSCode, to interact with an mTree simulation, since they make viewing and editing files of different formats more intuitive.

The first few lines of you .log file document the config file parameters which were used to run the simulation

../_images/quick_start_log_config.png

basic_simulation-2022_02_28-09_32_04_PM-R1-experiment.log

The rest of your .log file should look as follows.

../_images/quick_start_log_rest.png

basic_simulation-2022_02_28-09_32_04_PM-R1-experiment.log

Your .data file should look something like this -

../_images/quick_start_data_log.png

basic_simulation-2022_02_28-09_32_04_PM-R1-experiment.data

Note

Don’t worry if the log files on your end don’t match the ones shown here word for word. Since mTree is a concurrent Agent-Based Modelling software, it is common for different Actors to log asynchronously to the same .log and .data files, giving them an out of order look.

Checking for Errors

You can use the ctrl F (Windows) or cmd F (Mac) command to search for Error messages in the .log file. If there are no results then it is likely that your simulation has run properly. If there are instances of Error messages then check out the Error Handling section.

Warning

If you see no results for Error but your mTree log stops logging in the middle of the simulation, then it is still possible you have logic errors that don’t terminate the process. Luckily, you don’t have to worry about that in the common_value_auction auction example.

Quitting

Once the simulation has ended, you can run quit command in the docker shell to kill mTree. The quit command is used to kill all mTree processes as well as delete all Actor instances previously created to run the simulation.

quit

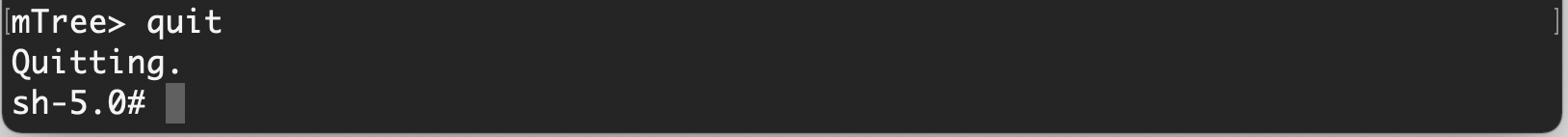

Your console should look like some version of this -

../_images/quick_start_quitting_mTree.png

Quitting mTree

Conclusion

Congratulations on successfully running your first mTree simulation! If you want to know how this example was built or you want to find more projects like this, checkout Common Value Auction or learning_paths sections. If you want to view a more in-depth case which builds an mTree project from scratch, checkout quick_build.
